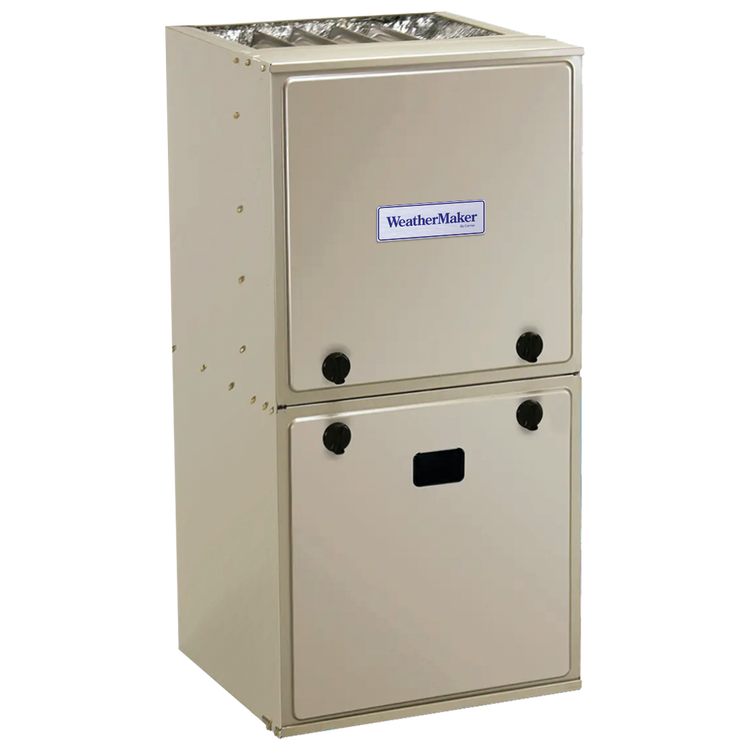

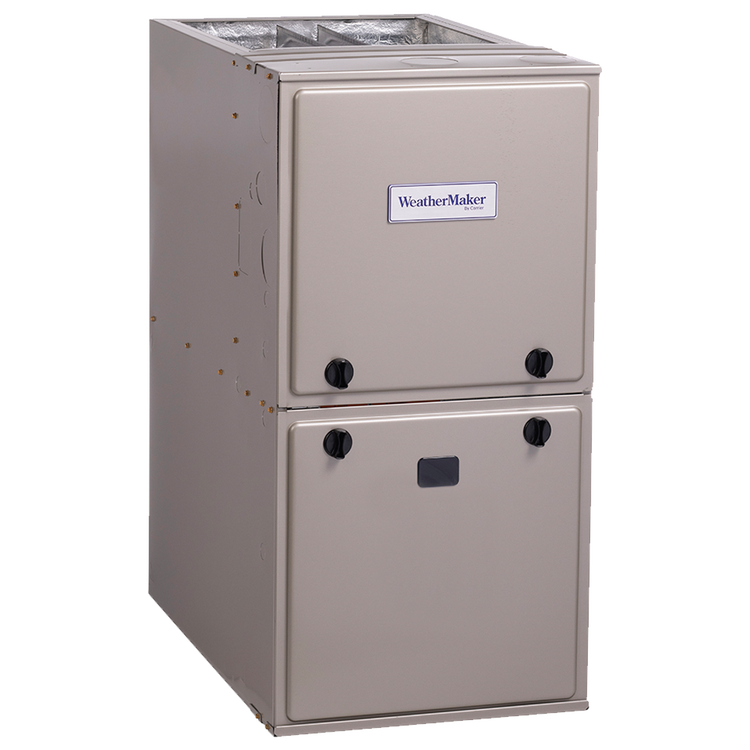

PG92MSA

Gas Furnace 92

Feel the heat and enjoy the savings. Our affordable 90% or higher gas furnace provides reliable, single-stage operation for comfort you can depend on. Significantly more efficient than typical older models, this furnace achieves up to 92.1% AFUE and qualifies for the ENERGY STAR® designation on select sizes. It's a comfortable combination of warmth, economy and value.

Product Image Overlay
Enery Star
Product Image Overlay Alt
Energy Star
Tooltip Image
Tooltip Image Alt
Icon of a question mark
Tooltip Text
To the original owner, when product is used in an owner-occupied residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. See warranty certificate for details
Tooltip Image
Tooltip Image Alt
Icon of a question mark
Tooltip Text
Timely registration required for 10-year parts limited warranty. Limited warranty period is 5 years if not registered within 90 days of installation. Jurisdictions where warranty benefits cannot be conditioned on registration will receive the registered limited warranty periods. Please see warranty certificate for further details and restrictions.
Features & Benefits (open)
  • Single-stage operation
  • Your dealer can choose between 18-speed options on the blower motor to personalize the comfort of your home.-Dual fuel capable with a compatible heat pump and thermostat for energy-saving heating performance
  • Air purifier and humidifier compatible
  • High temperature limit control helps prevent overheating
  • 10-Year Parts Limited Warranty upon timely registration*
  • 20-Year Heat Exchanger Limited Warranty*
Specifications
  • Efficient multi 18-speed constant torque ECM blower motor
  • Single-stage gas valve
  • Aluminized-steel primary heat exchanger, stainless steel secondary heat exchanger
  • Silicon nitride hot surface igniter
  • Sound-reducing features: soft mounted blower and inducer motor
  • Compatible thermostat: heat/cool
  • Heating capacity: 40,000–120,000 BTUh
Product Details (open)
Reference: table
Documents
Reference: document-listing
Efficiency Rating
Up to 92.1% AFUE

AFUE

Gas furnaces use Annual Fuel Utilization Efficiency (AFUE) as their efficiency measurement. The higher the AFUE, the greater the efficiency and the greater your energy savings potential.

Operation Operation
Single-Stage Operation

Operation

A single-stage unit operates at full capacity when on, a two-stage unit has two levels of operation (low for mild heating needs and high for maximum heating), and a modulating unit continuously adjusts its output to match the precise heating demands, offering more efficient and consistent temperature control.

Blower Motor
Fixed speed blower motor with 18 speed options for your dealer to select from

Blower Motor

The blower motor helps circulate heated air through the ductwork and distributes it evenly throughout the home for consistent indoor comfort.

ENERGY STAR® Qualified
Select Sizes
Warranty Warranty
10-year parts limited warranty upon timely registration*
Heat Exhanger Warranty Heat Exchanger Warranty
20-Year Heat Exchanger Limited Warranty*
Heating Capacity Heating Capacity
40,000–120,000 BTUh

Heating Capacity

Heating capacity for a furnace refers to the amount of heat a furnace can produce to warm a space, measured in British Thermal Units per hour (BTUh).

Categories
gas-furnaces

*Timely registration required for 10-year parts limited warranty. Limited warranty period is 5 years for parts if not registered within 90 days of installation. The warranty period on the heat exchangers is 20 years. Jurisdictions where warranty benefits cannot be conditioned on registration will receive the registered limited warranty periods. Please see warranty certificate for further details and restrictions.

For California Residents:
For installation in SCAQMD only : This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450. This furnace is not eligible for the Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com .

California residents please see Proposition 65
